Advanced GSM Meter Reading and Billing System using 8051

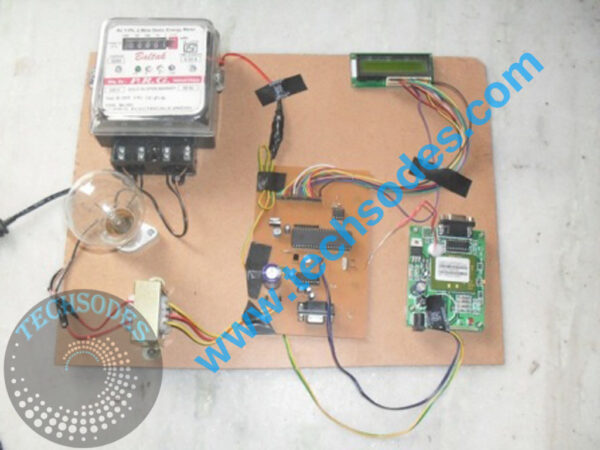

Description

Abstract – Advanced GSM Meter Reading and Billing System using 8051 Microcontroller

The Advanced GSM Meter Reading and Billing System using 8051 microcontroller is an innovative solution designed to automate the process of energy meter reading, data collection, and bill generation, eliminating the need for manual meter reading. This technology allows for the automatic acquisition of meter readings from the consumer?s electricity meter and the wireless transmission of this data to the service provider using GSM (Global System for Mobile Communication) technology.

The system consists of a transmitter unit installed at the consumer?s premises and a software-enabled central server at the service provider?s end. The transmitter is connected to the existing energy meter and continuously monitors the energy consumption by counting the output pulses from the meter. Each pulse represents a predefined unit of energy consumed. The pulse count is processed by the AT89S52 microcontroller (from the 8051 family), which calculates the total consumption and displays it on a 16?2 LCD display for local monitoring.

At regular intervals, or on request, the system sends the current meter reading to a predefined administrator or service provider?s mobile number via SMS (Short Message Service) using a GSM modem such as the SIM900/SIM800 module. This allows the electricity provider to collect consumption data remotely without physical visits, ensuring faster and more accurate billing.

In addition, an advanced software application is integrated at the service provider?s side. This application stores incoming meter readings in a database, calculates the total bill based on the current tariff rate, and allows for automatic bill printing if a printer is connected. The software can also provide real-time monitoring of multiple consumers, making it ideal for large-scale deployment.

1. Introduction

Traditional energy meter reading methods require field staff to physically visit every consumer location to collect readings. This process is:

• Time-consuming
• Labor-intensive
• Error-prone
• Costly for service providers

The proposed GSM-based Automatic Meter Reading (AMR) system addresses these issues by enabling the automatic, remote, and accurate transmission of meter readings. Using GSM technology, the system can communicate over long distances, covering rural and urban areas without additional infrastructure.

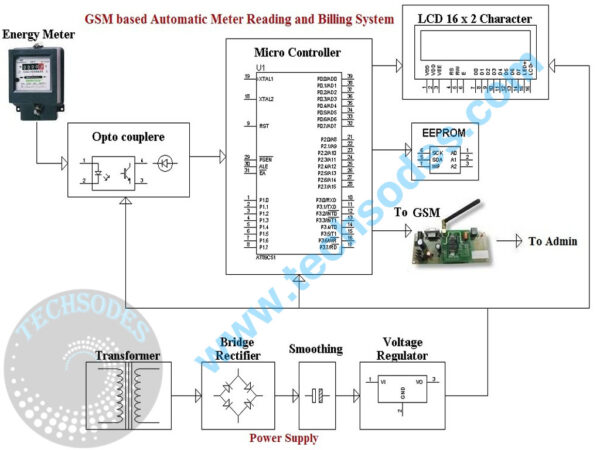

2. System Overview

The system has two main sections:

1. Consumer-Side Transmitter Unit
2. Service Provider-Side Monitoring & Billing System

2.1 Consumer-Side Transmitter Unit

• Energy Meter Interface ? Captures pulses from the energy meter output.
• AT89S52 Microcontroller ? Processes the pulse data and calculates the consumption.
• LCD Display (16?2) ? Shows the real-time consumption value.
• GSM Module ? Sends consumption data to the central server via SMS.
• Power Supply Unit ? Provides stable DC voltage to all components.

2.2 Service Provider-Side Monitoring

• GSM Receiver / SIM-based Communication ? Receives SMS readings from multiple consumer units.
• PC-Based Software ? Stores data, calculates billing, and generates reports.
• Database Management ? Maintains historical consumption records for each consumer.
• Billing System ? Uses tariff rates to calculate charges for the billing cycle.

3. Working Principle

1. Data Acquisition
   • The energy meter generates pulses proportional to energy consumed.
   • Each pulse is detected by the microcontroller through an opto-isolator or direct interfacing.
2. Data Processing
   • The AT89S52 counts pulses and calculates total units consumed.
   • The data is continuously updated and shown on the LCD display.
3. Data Transmission
   • At predefined intervals or upon request, the microcontroller sends the consumption data to the GSM module via UART communication.
   • The GSM module formats the reading as an SMS and sends it to the service provider?s mobile number or server.
4. Billing and Monitoring
   • The received SMS is processed by the service provider?s software.
   • The bill is automatically calculated based on the tariff entered in the system.
   • The bill can be printed, emailed, or sent as an SMS to the consumer.

4. Hardware Components

5. Advantages

1. No Manual Reading Required ? Eliminates the need for field staff to visit each location.
2. Reduced Human Error ? Automated data collection minimizes inaccuracies.
3. Real-Time Monitoring ? Providers can monitor usage instantly.
4. Low Maintenance ? Once installed, requires minimal servicing.
5. Scalable Design ? Can be deployed for thousands of customers.
6. Remote Billing Control ? Bills can be generated anytime from the central office.
7. Supply Control Option ? System can be upgraded to remotely disconnect supply in case of non-payment.

6. Applications

• Electricity billing for residential and commercial users.
• Industrial energy monitoring.
• Prepaid metering systems.
• Remote consumption tracking in rural areas.

7. Future Scope

• Two-Way Communication ? Allow providers to send commands to the meter for supply control.
• Web & Mobile App Integration ? Consumers can track usage and bills online.
• Renewable Energy Integration ? Monitor and bill solar or wind energy contributions.
• Prepaid Mode ? Enable recharge-based consumption like mobile balance.

8. Conclusion

The Advanced GSM Meter Reading and Billing System using 8051 is a cost-effective, reliable, and efficient solution for automating the meter reading and billing process. It reduces operational costs, improves accuracy, and increases transparency between the service provider and consumer.

By leveraging GSM technology and a microcontroller-based pulse counting system, it ensures that data is transmitted securely and timely, enabling better energy management and customer satisfaction. With additional features such as real-time updates, remote supply control, and software integration, this system represents a significant advancement in utility metering technology.
