Prepaid Energy Meter Using Smart Card

Description

Abstract: Prepaid Energy Meter Using AT89S52 Microcontroller with Smart Card and Theft Detection System

In the modern era of digital utility management, a secure and intelligent energy distribution system is essential. This project presents a Prepaid Energy Meter using the AT89S52 microcontroller, which introduces a dual-unit architecture for enhanced user convenience and built-in theft detection. The system leverages smart card technology, EEPROM-based data protection, and automatic power control, creating a robust and secure “Pay Before Use” model.

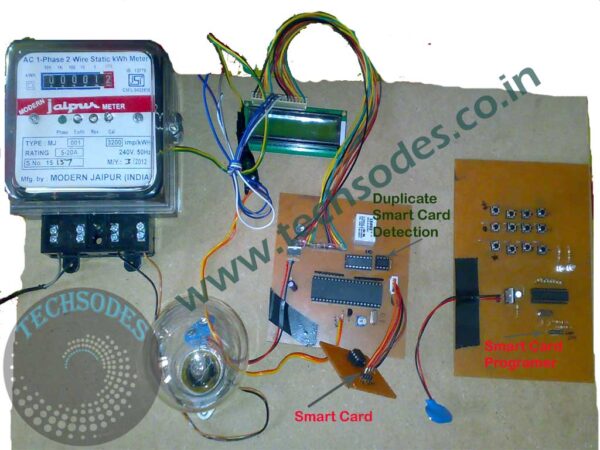

1. System Overview

The system comprises two primary units:

1. Recharge Unit (Admin Side): Used to load credits into the smart card.
2. Meter Unit (User Side): Installed at the consumer?s end to monitor usage, control power, and detect tampering.

The smart card is inserted into the recharge unit where it is loaded with prepaid energy units. Later, the user inserts the card into their own meter unit to activate the power supply.

2. Key Components

• AT89S52 Microcontroller: Manages card reading, energy monitoring, EEPROM comparison, and power switching.
• Smart Card (EEPROM-Based): Acts as a portable medium to carry the energy credits from recharge unit to user unit.
• Dual EEPROM Architecture:
  • EEPROM #1 (In Card): Stores credit and secure transaction ID during recharge.
  • EEPROM #2 (In Meter Unit): Clones and stores the same data when card is inserted into user side.
• LCD Display: Shows available units, status messages, tamper alerts, etc.
• Relay with Driver Circuit: Enables/disables power based on available credit.
• Buzzer: Alerts the user when credit is low or tampering is detected.
• Energy Monitoring Circuit: Tracks consumption and deducts units accordingly.

3. System Workflow

?? Recharge Process:

• The user inserts the smart card into the ( programmer) recharge unit.
• Predefined energy units and a unique transaction ID are written to the card’s EEPROM.
• Once the data is transferred, the card is removed.

? Energy Meter Usage:

• At the user?s location, the card is inserted into the meter unit.
• The system reads the card data and clones it into internal EEPROM (EEPROM #2).
• The relay is activated and energy consumption begins.
• Units are deducted in real-time and displayed.

?? Tamper/Theft Detection:

• If the user tries to remove, duplicate, or modify the smart card during usage, the system compares the card EEPROM and internal EEPROM.
• If mismatch is detected, it triggers a tampering alert:
  • Relay is deactivated (power cutoff).
  • Buzzer sounds as a warning.
  • LCD shows ?Theft Detected? or similar message.

This dual verification ensures that the smart card cannot be cloned or reused improperly.

4. Advantages

• Prepaid Model: Ensures consumers pay before usage, improving payment discipline.
• Smart Card Recharge: Simplifies distribution of power credits.
• Data Security: Dual EEPROM and unique transaction ID enhance reliability.
• Tamper Detection: Protects against unauthorized card usage or cloning.
• Auto Power Cut-Off: Relay disconnects load on zero balance or tampering.
• User Feedback: Buzzer and display keep the user informed of balance and system status.
• Persistent Data: EEPROM stores last known balance for recovery after power failure.

5. Applications

• Residential colonies and apartment complexes
• Temporary construction sites and event setups
• Rental homes with individual metering
• Hostels, schools, and institutional premises
• Utility companies deploying smart prepaid systems

6. Conclusion

This Prepaid Energy Meter System with Smart Card and Theft Detection using AT89S52 microcontroller is a cost-effective, secure, and intelligent energy distribution model. It not only enables prepaid usage but also introduces real-time security checks by comparing EEPROM data for tamper prevention. By integrating hardware-level control with software-level validation, the system offers both user convenience and provider assurance ? forming a strong foundation for future integration with GSM, IoT, or cloud-based billing systems.
